ELIZABETH WOOD LS-623

623 auditorium chair 3

leadcom seating auditorium seating LS-623_1

leadcom seating auditorium seating LS-623_3

leadcom seating auditorium seating LS-623_2

623 auditorium chair 4

623 auditorium chair 5

ELIZABETH WOOD LS-623

ELIZABETH is designed to maximise comfort, elegance and performance. With a touch of sophistication and grace, this is a chair specially crafted for those venues where the more atypical design needs are requested.

OUTERBACK: Plywood surfaced with wood veneer
BACK & SEAT CUSHION: High resilient cold molded foam for optimal comfort
SEAT PAN: Plywood surfaced with wood veneer
TIP-UP SEAT MECHANISM: Combination of spring and damping
ARMREST: Scrolled hardwood armrest, writing tablet available
END PANEL: Optional painted wood or melamine
LEG: Die-cast aluminum structural support

Request a quote

Categories: Wood Back, Classic Theater Seating, Auditoriums, Performing Arts Tag: Space-saver seating

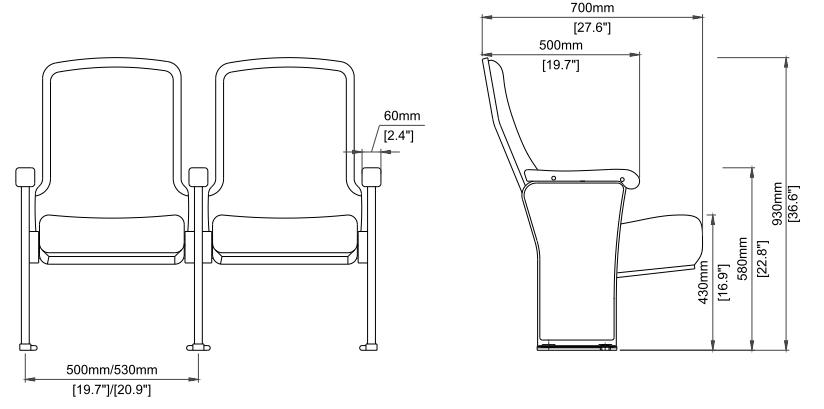

DIMENSION
OPTIONS

Description

DESCRIPTION	MM	INCH
C/C (armrest center to center)	500/530/550	19.7/20.8/21.6
Armrest to rear back depth	500	19.7
Overall depth with seat open (500/530mm C/C)	700	27.6
Overall depth with seat open (550mm C/C)	730	28.7
Floor to seat height (500/530mm C/C)	430	16.9
Floor to seat height (550mm C/C)	450	17.7
Floor to armrest height	580	22.8
Overall back height	930	36.6

Elizebeth Auditorium Seating Collection

Options and benefits tailored to your needs and requirements – from essentials to added premiums.

Model

Outerback/seat pan
Tip-up mechanism
End panel
Writing tablet (optional)

Elizabeth Upholstery

Full upholstered
Spring and damping
Aluminum frame with melamine finish
Stowed ABS tablet

Elizabeth Wood

Plywood with wood veneer finish
Spring and damping
Aluminum frame with melamine finish
Stowed ABS tablet

Elizabeth Legend

Plywood with wood veneer finish
Spring and damping
Hardwood and plywood, carved hardwood pattern
Not available

: Full upholstered back

: Full upholstered seat

: PP writing tablet

: Aluminum row letter – Black

: Aluminum row letter – Blue

: Aluminum seat number – Black

: Aluminum seat number -Blue

Product Installations
